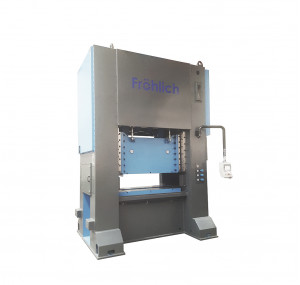

FRHS251

FRHS251
FRHS251

Description

Müşteri isteğine göre özel üretim pres makineleri

0.00TL
Ex Tax: 0.00TL
Technicial Specifications
Rated Force 250 Tons
Sabit Kurs Ölçüsü 60 mm
Regulation Range (Auto) 900 mm
Max Table Height 440 mm
Max. Closed Die Height 380 mm
Number of Strokes 30 - 80 rpm
Bearing Surface 8 Pieces
Number of Cranks 1 Pieces
Number of Connecting Rods 2 Pieces
Ram Balance Piston 4 Pieces
Table Dimensions 1200 x 900 mm
Bottom Table Dimensions 1200 x 1000 mm
Main Engine 22 kw
Approximate Weight 20.000 kg
STANDARD FEATURES
Heat Treated Steel Body
Induction - Grinding Crank and Gear System
Steel Cast Ram and Connecting Rod System
Semi-Automatic Course System
Ratchet System Ram Adjustment
Pneumatic Balancing Cylinders
Gear System in Closed Oil Chamber
Conical Clamping Gear System
Pneumatic Clutch Brake System
Engine Forward Reverse Control System
Double Coil Press Relief Valve
PLC Application and Touch Screen
Photocell Protection System
Mechanical Safety Barriers
Mechanical Overload Fuse
Central Automatic Lubrication System
CE Approved
2 Year Warranty
OPTIONAL FEATURES
Hydraulic Fuse
Speed Control Unit
Motorized Control Adjustment System
Extra Bottom Base
Bottom Extractor Cushion System
Anti Vibration Wedge
